Designing the Product Management App - Architecture and Class diagram

Architectural Pattern

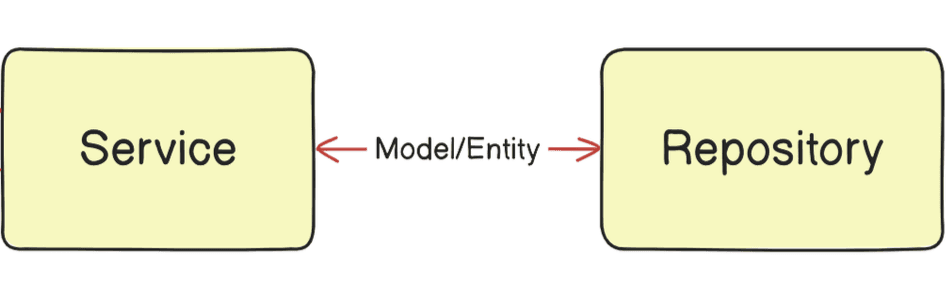

• We are going to build the Product Management App using a Layered architecture:
  • Service Layer: Contains business logic and handles operations on product data.
  • Repository Layer: Manages data persistence and interaction with the database.

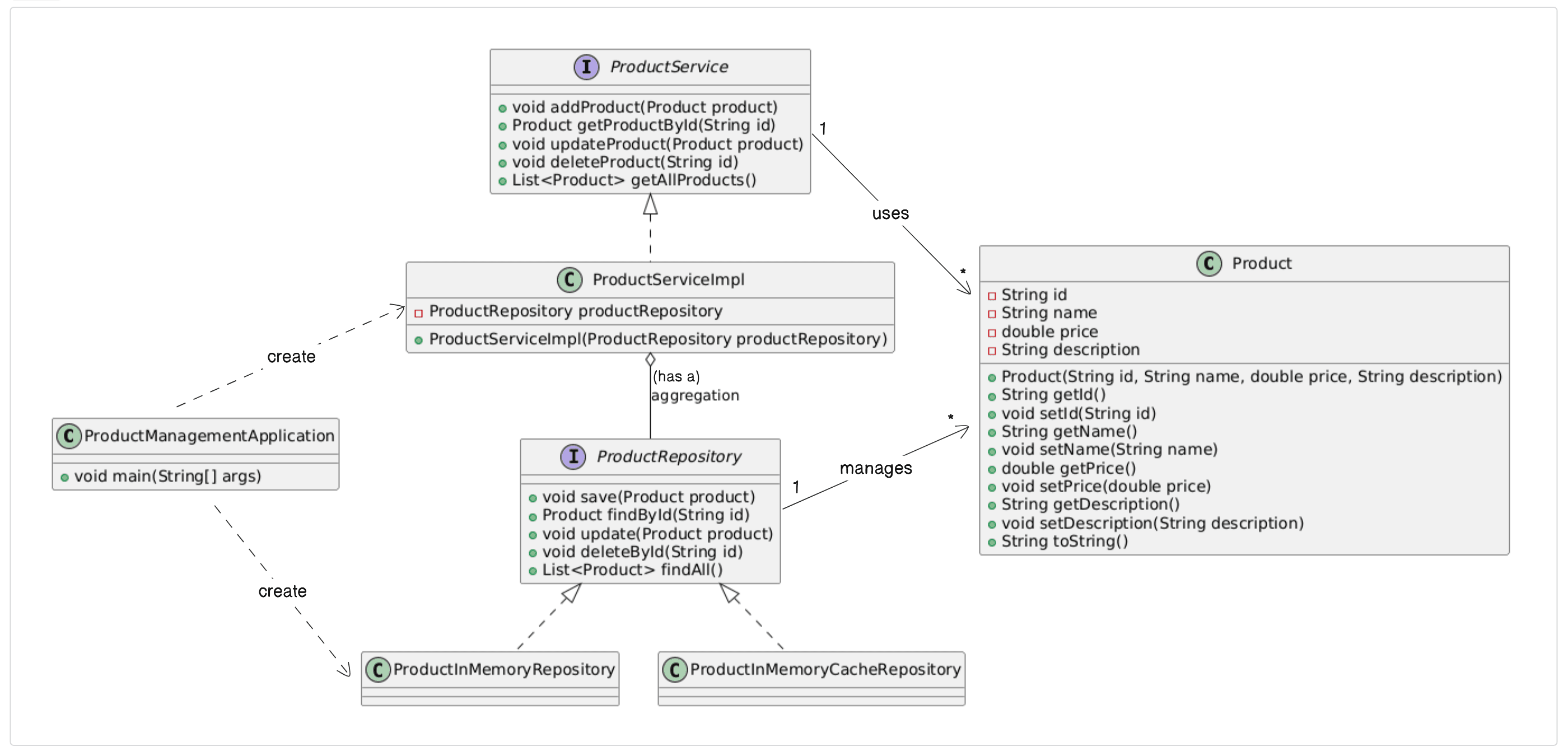

Product Management App - Class diagram
